Description
SPECIFICATIONS
| Transmission | Automatic H-L-N-R-P |
| Horsepower | 26 HP |
| Cooling | Liquid |
| Drivetrain | Shaft Drive; On-Demand 2WD/4WD; Locking Differential |
| Ignition | Electronic Control Unit |
| Fuel System | EFI |
| Compression Ratio | 10 : 1 |
| Bore & Stroke | 82 mm x 74 mm |
| Displacement | 391 cc |
| Engine Type | Four-Stroke, Single Cylinder |
| Fuel Tank Capacity | 4.8 gallons |
| Bed Capacity | 400 lbs |
| Bed Dimension | 47 in x 34.5 in |
| Dry Weight | 1102 lbs |

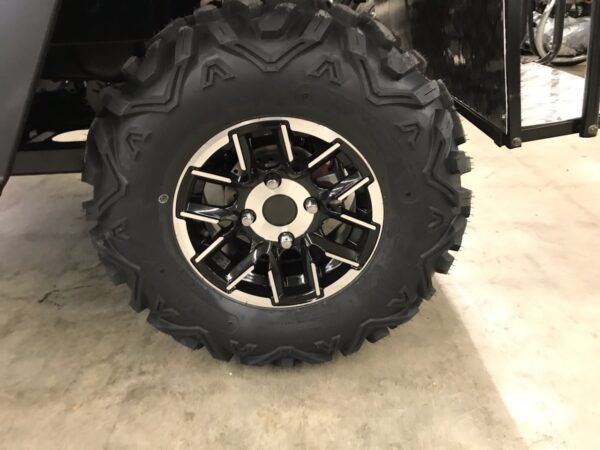

| Front Tires | 25 x 8-12 |
| Ground Clearance | 9 in |
| Length x Width x Height | 103 in x 56.5 in x 74.5 in |
| Rear Tires | 25 x 10-12 |
| Seat Height | 34.5 in |
| Towing Capacity | 1000 lbs |
| Wheelbase | 74 in |
Suspension
| Front Suspension | McPherson Independent |
| Rear Suspension | Independent Double A-Arm |
Brakes
| Front Brake | Dual Ventilated Hydraulic Disc |
| Rear Brake | Dual Ventilated Hydraulic Disc |
Accessories
| Side Mirrors Set | Standard |
| Winch | Standard |
| Roof | Standard |
| Rear 2″ Hitch Receiver | Standard |
| Turn Signals | Standard |
| Foldable Windshield | Optional |
| Soft Cab Enclosure | Optional |
| UTV Cover | Optional |
| Rear Seat Convertible to Cargo Deck |
