Description
The 2022 Frontier 700 Scout 8×8 returns to meet the most demanding needs of the avid hunter and outdoorsmen with a new True Timer camo color and a switch to the reliable Vanguard 23hp EFI engine. The Scout 8×8 is packed with standard factory-installed accessories, such as a removable front rack, full-length skid plate, front and rear bearing extensions, Warn VRX 2500 cable winch, brush guard, bilge pump, bed liner, and a air-cooled 23hp EFI engine mated to the Generation II Classic skid steer transmission mated to the APS steering system which reduces driver fatigue offers 20% more drivers legroom with a flat floor, and a revised firewall makes the vehicle’s ergonomics much more comfortable over past model designs. New for 2022 the Frontier 700 Scout 8×8 features ITC (Instant Torque Clutch) that responds quicker than previous model years and increases torque to the tires for better overall performance with or without tracks installed. A new 8.5-gallon fuel tank increases range, new full-motion chain tensioners reduce chain stretch and led brake taillights to round out the updates for the 2022 model year.
Power is provided by a 4 stroke OHV V-Twin air-cooled 627cc 23 hp (17 kW) Vanguard EFI engine providing the perfect amount of horsepower for those looking to add tracks for deep mud environments or explore higher elevations.
The Frontier 700 Scout 8×8 has a load capacity of up to 790 lb. / 358 kg on land or 690 lb. / 313 kg on water and can transport up to 6 passengers on land and up to 4 on the water. It features a towing capacity of 1,200 lb. / 544 kg.
SPECIFICATIONS:
HORSEPOWER | 23HP – BRIGGS VANGUARD EFI |
CYLINDER | V-TWIN |
FUEL SYSTEM | EFI |
COOLING | FAN COOLED |
ALTERNATOR OUTPUT (MAX) | 16 AMPS |
SERVICE BRAKES | HYDRAULIC |
STEERING BRAKES | HYDRAULIC |
AUTO CHAIN LUBRICATION | ACCESSORY |
BRAKE COOLING FAN | ACCESSORY |
TRANSMISSION | CLASSIC W/APS |
DRIVE BELT | STANDARD DUTY |
FULL SKID PLATE | STANDARD |
BRUSHGUARD | STANDARD |

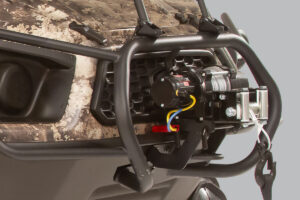

WINCH | 2,500 LB WARN |
FRONT RACK | STANDARD |
BILGE PUMP | STANDARD |
REAR HANDRAILS | N/A |
REAR BENCH SEAT | ACCESSORY – W/ BEDLINER REMOVED |
REAR WINCH RECEIVER | ACCESSORY |
WINDSHIELD | ACCESSORY |
LOAD CAPACITY – LAND | 790 LB (358 KG) |
LOAD CAPACITY – WATER | 690 LB (313 KG) |
TOWING CAPACITY | 1,200 LB (544 KG) |
SEATING CAPACITY – LAND | 6 |
SEATING CAPACITY – WATER | 4 |
FUEL CAPACITY | 8.5 GAL (32 L) |
SPEED – LAND (ST TRANSMISSION) | 16 MPH (26 KM/H) |
SPEED – WATER | 3 MPH (5 KM/H) |
WEIGHT | 1,270 LB (576 KG) |
LENGTH (INCLUDES WINCH WHEN STANDARD) | 126 IN (3,200 MM) |
WIDTH | 58 IN (1,473 MM) |
HEIGHT | 51 IN (1,295 MM) |
AXLE BEARING EXTENSIONS | STANDARD |
ENTRY STEP | ACCESSORY |
TIRES | ARGO AT189 24X10-8 |
RIMS | STEEL OFFSET |
GROUND PRESSURE (18″ RUBBER TRACKS) | 0.73 PSI (5 KPA) |
GROUND CLEARANCE (TIRES) | 9 IN (228 MM) |
GROUND CLEARANCE (TRACKS) | 10 IN (254 MM) |
WARRANTY | 1 YEAR |
COLORS | TRUE TIMBER CAMO |
